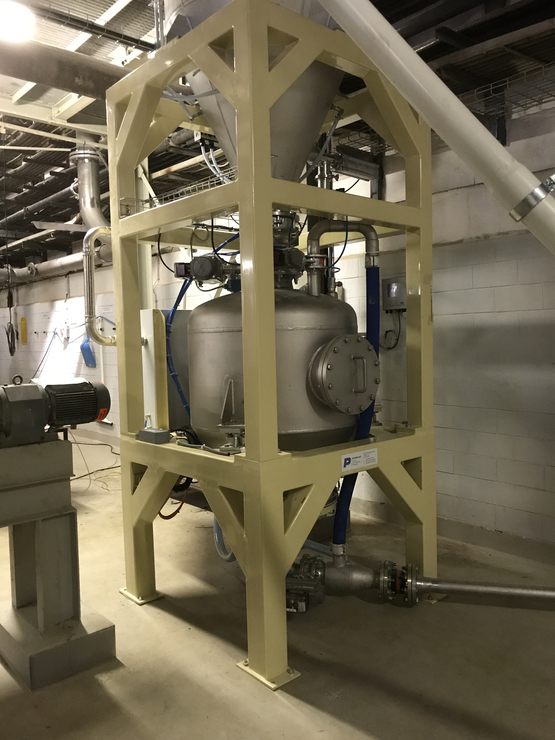

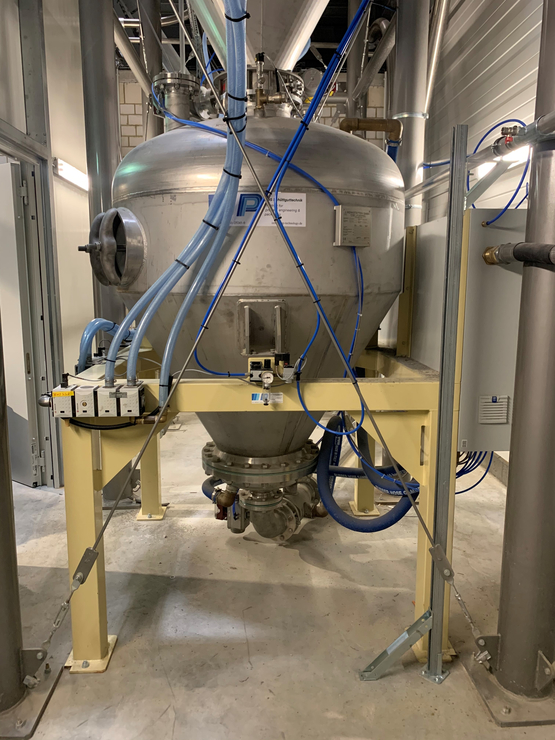

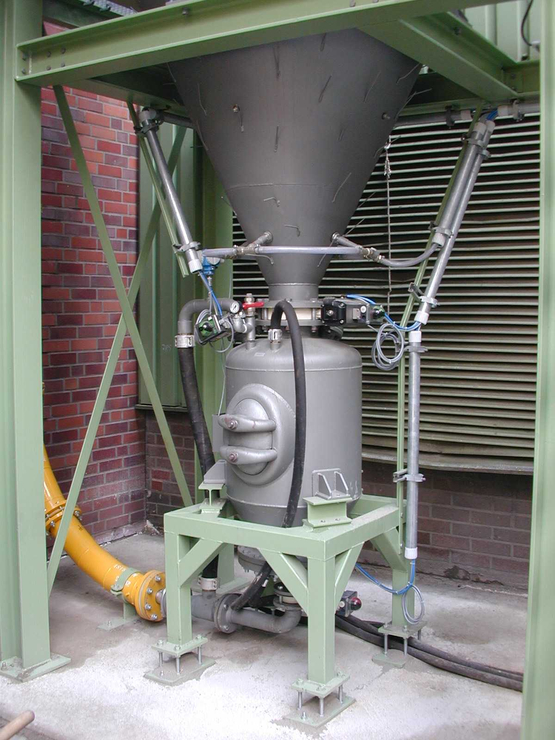

Pressure vessel conveyors DFS

Pneumatic conveying systems

Customized, high-performance pneumatic pressure conveying systems

For pneumatical transport of dry and powdered bulk goods using the dense phase method. For use in the entire bulk goods area, e.g. food, milling and animal feed, building material, chemical and pharmaceutical industries*

Benefits:

  • Highest possible protection of the product due to low conveying speed
  • Transport pipes up to 500 m and more can be realised
  • High conveying performance over long transport distances
  • Low energy costs due to reduced compressed air consumption
  • Conveying using inert gas possible
  • Smaller pipe cross-sections compared to low dense conveying
  • Weighing by batch possible
  • No dismantling of pipework in case of blockages
  • Effective utilisation of the available compressed air network
  • Easy, fast cleaning

Design of the machine:

  • Stationary or mobile design
  • Components for product contact material S235JR or stainless steels 306 or 316L
  • TÜV-certified pressure vessels according to the Pressure Equipment Directive 97/23/EC and according to the AD 2000 leaflets
  • GMP and FDA-compliant
  • CIP cleaning
  • HACCP concepts

Options:

  • Custom designs can be realised
  • Mobile test machine with pipe available
  • Custom sizes on request
  • Design of the discharge system also available as a cone or flat bottom

For enquires please state purpose and describe installation situation!
